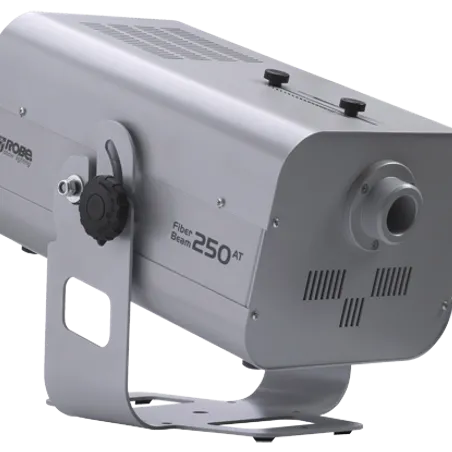

The FiberBeam 250 AT is luminaire used for illuminating fiber optic cables. It is based on double condenser lens with high efficiency spherical mirror. Comes with 250W discharge lamp, 11 dichroic colour filters plus open, effects wheel with 6 colours for colour mixing and sparkling effect, linear mechanical dimmer and strobe-effects.

Technical Specification

Expand AllDownload PDFCollapse All

Source

Lamp: Compact high-pressure metal halide lamp

Base: GY-9.5

Approved model: Philips MSD 250/2

Ballast: Magnetic

Optical system

Electrical specification and connections

Mechanical specification

Thermal specification

Control and programming

Addressing, special functions setting, effects calibration via control panel with 4-digit LED display

Readout fixture and lamp usage, receiving DMX values, temperature, etc.

Built-in analyzer for easy fault finding error messages

Remotely switching of the lamp

Built-in demo sequences

Silent fans cooling, remotely controllable speed of fans

Self-resetable thermo-fuse

Digital serial input DMX-512

4 DMX channels

3 freely-programmable programs, up to 99 steps each

Master/Slave operation

Stand-alone operation

Electromechanical effects
